- Using forward Rolling encryption transmission, circulates every 8 million times;
- Low-voltage and remained power volume indicating;
- Transmission range: > 100m;
- Detection range: > 7m;
- Detection angle: 100 degree(Horizontal),60 degree(Vertical);
- Super low standby current < 30uA;
- In-built 3pcs AA batteries last over 2 years usage;
- 315/433/868/915MHz optional;
- Size: 114mm *60mm *38mm

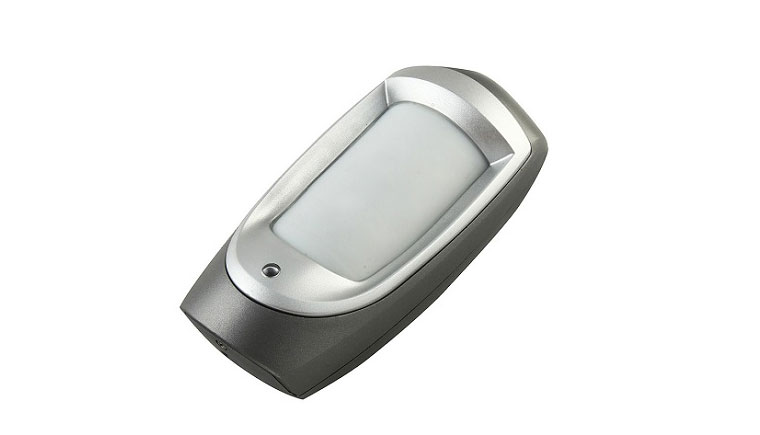

Outdoor water-proof PIR motion detector
- Input Voltage 9-16VDC
- Current Drain 30mA@ 12VDC
- Detection Range 11.6m*11.6m
- Alarm output NC.>100mA/28 VDC
- Anti white light resistance >20000LUX
- Installation height: 2m-2.7m
- Tamper switch NC.100mA/28 VDC
- Tripping Indication: lndicator lights for about 10-30 seconds
- Anti -EMI/RFI 10V/m 10MHz~1000MHz
- Motion test 0.2m/s-3.5m/s (0.6ft-11ft)
- Humidity 5%-95% RH

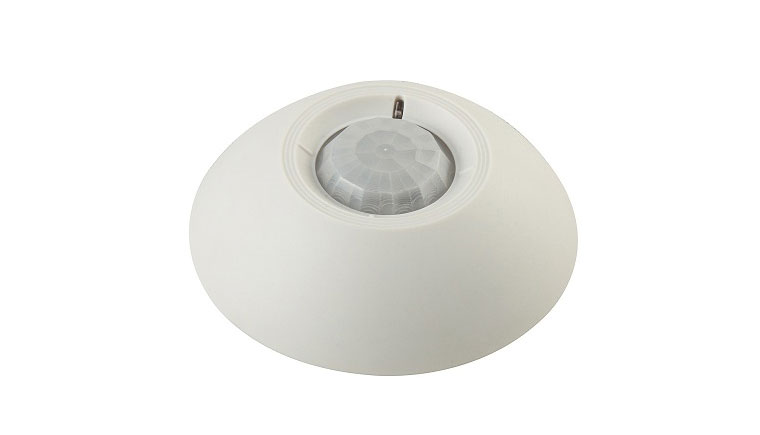

Ceiling PIR motion detector
- Power Supply DC 3V (AA LR6 1.5V Battery x 2pcs)
- Static Current ≤50uA
- Alarm Current ≤9.5mA
- Installation Height 2.5-6m
- Detection Scope Dia. 6m/360°(when installation height is 3.6m)
- Transmitting Distance ≤80m (in open area)
- Radio Frequency 315MHz or 433.92MHz
- Housing Material PC+ABS Plastic
- Operation Condition Temperature: -10°C~+55°C
- Relative Humidity: ≤80% (non-condensing)

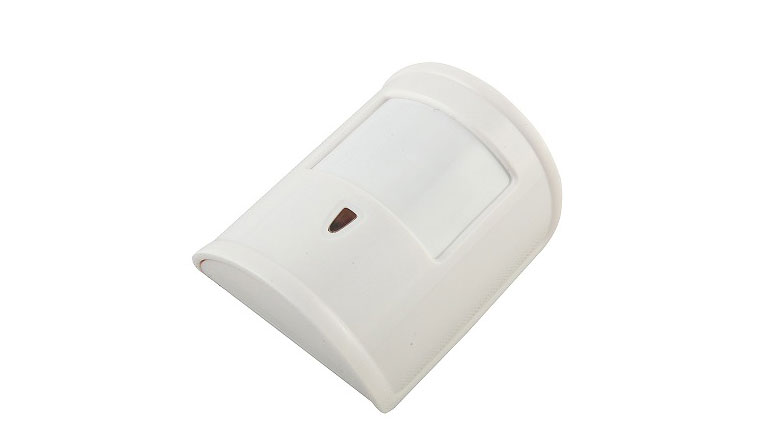

Pet-friendly PIR motion detector
- Battery Supply 9VDC
- Current drain:Transmit current drain <17mA(9VDC) ：Standby current drain <28uA(9VDC)
- Detection distance 10~12m(25°C)
- Detection angle Horizontal 110
- Transmit range 80m(no barriers)
- Frequency 315MHz,433.92MHz
- Alarm indication LED lights for 2~3 seconds
- Pulse counter “1”, “2”, “3” pulse selectable (default: “1”)
- Sensor Dual element low noise puroelectric thermal sensor
- Mounting Mounting height 1.8-2.4m
- Temperature Operate temperature: -10°C~50°C
- Storage temperature: -20°C~60°C
- Dimension 96*75*42mm(L*W*H)
